As Manufacturing Lead during the Charged Up season, I led fabrication and physical assembly of major robot mechanisms under tight deadlines. The core win was solving a recurring design-for-manufacturing bottleneck in tab-and-slot plate assemblies, which removed major manual rework and standardized our process for future builds.

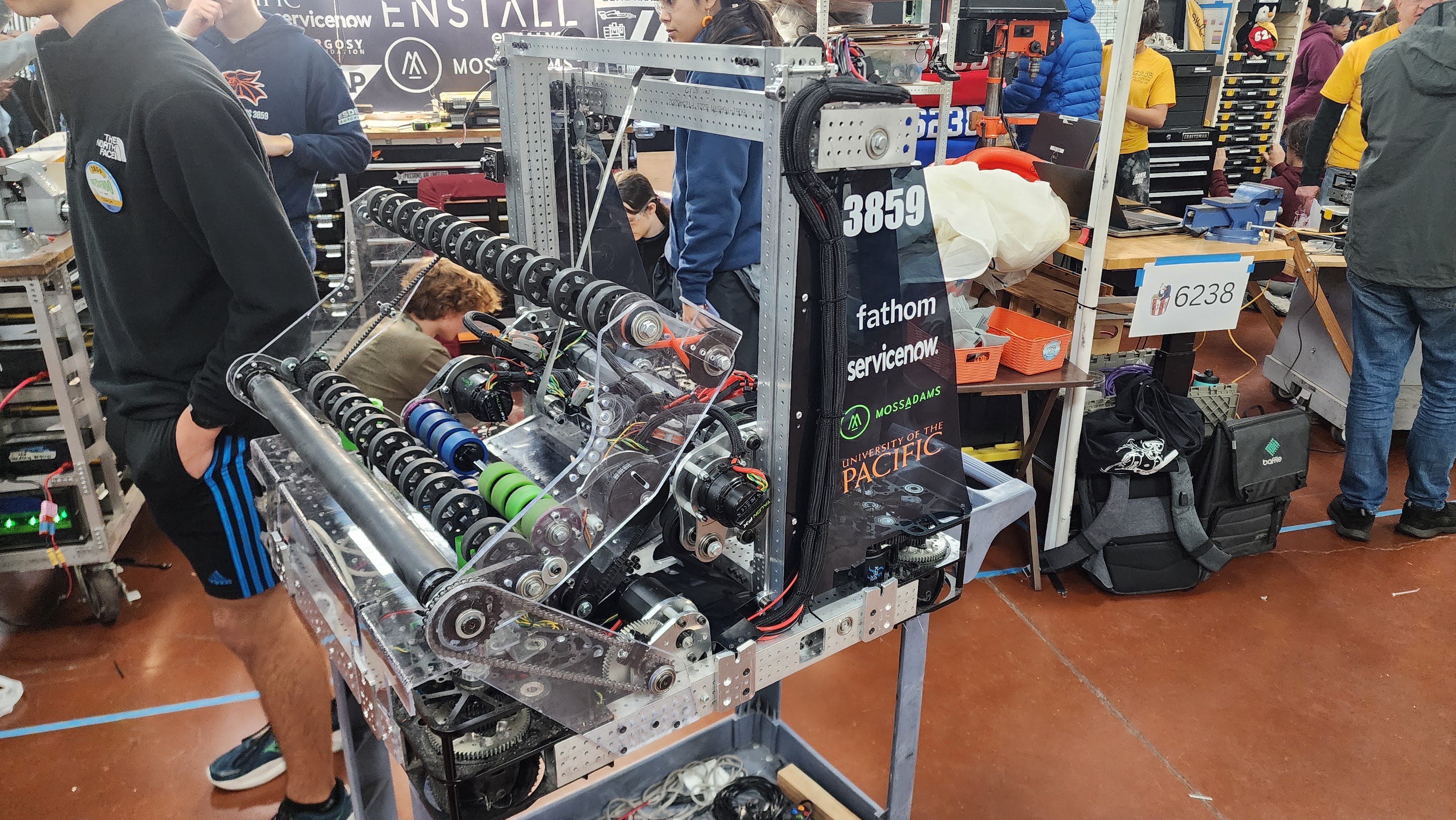

Project Photo
Project Overview

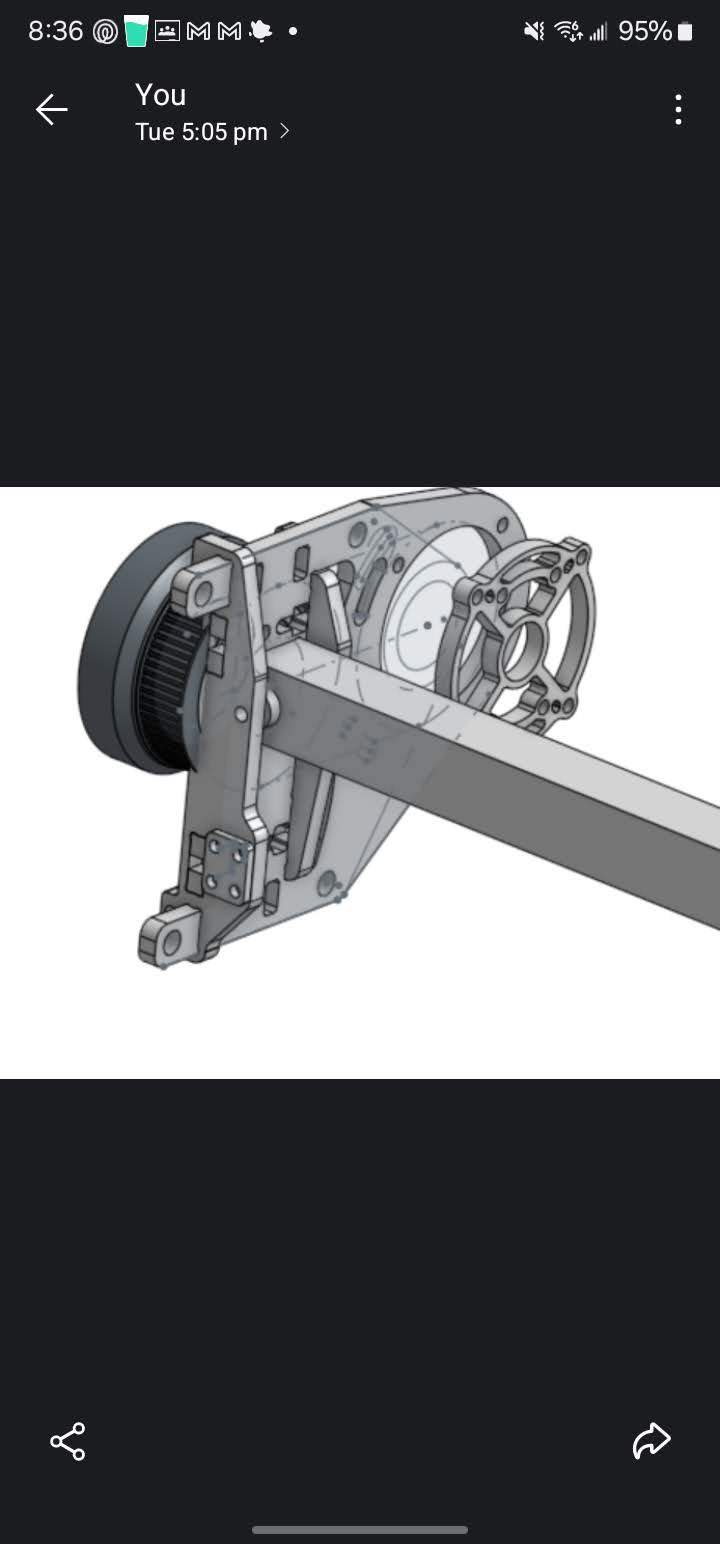

Our team had to convert complex 3D structures, including elevators, intakes, and scoring mechanisms, from flat aluminum and polycarbonate plates. The biggest blocker was internal-corner geometry limitations from CNC tooling, which caused interference during assembly and consumed huge amounts of hand-finishing time.
Square Peg in a Round Hole Problem

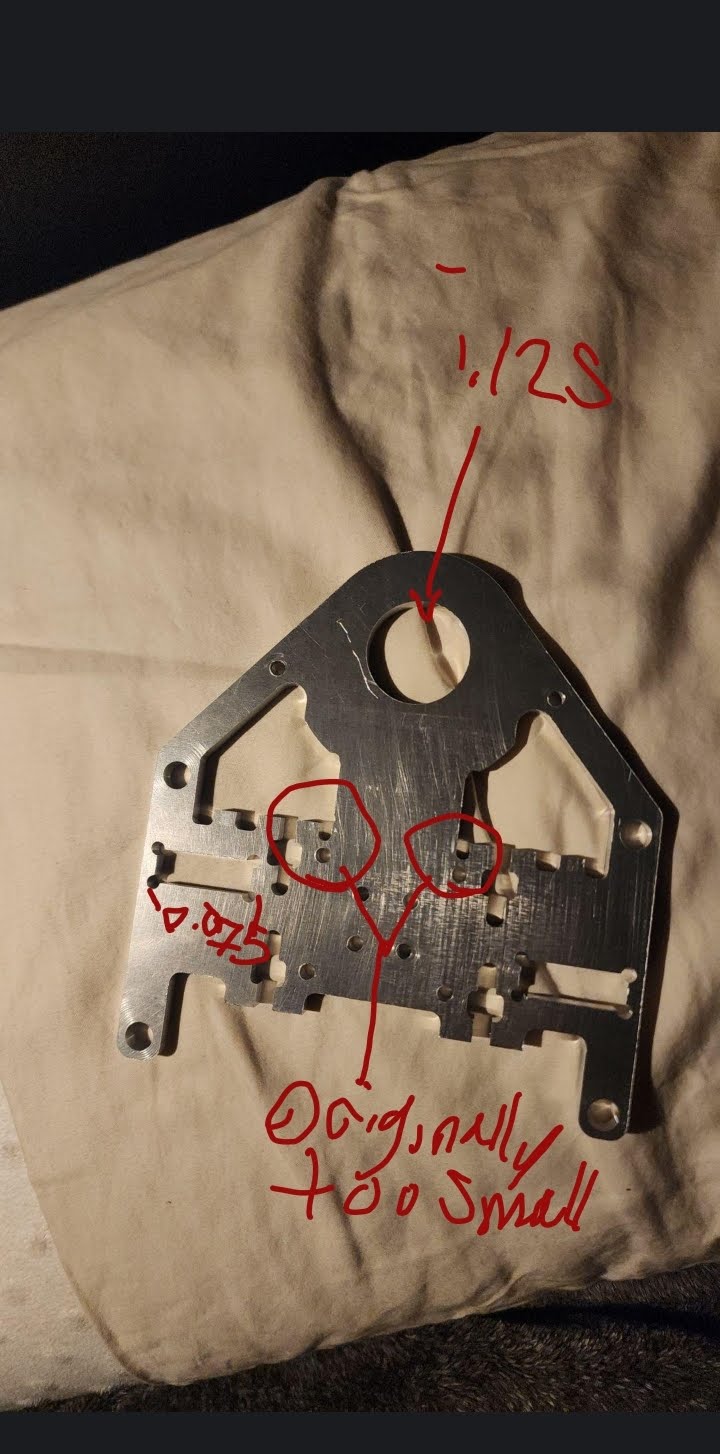

With cylindrical endmills, milled internal corners always retain a tool radius. That meant square tabs could not fully seat in rectangular slots without additional clearance. Our early workaround was manual filing, which was slow, inconsistent, and tolerance-sensitive.
Dogbone Relief Implementation

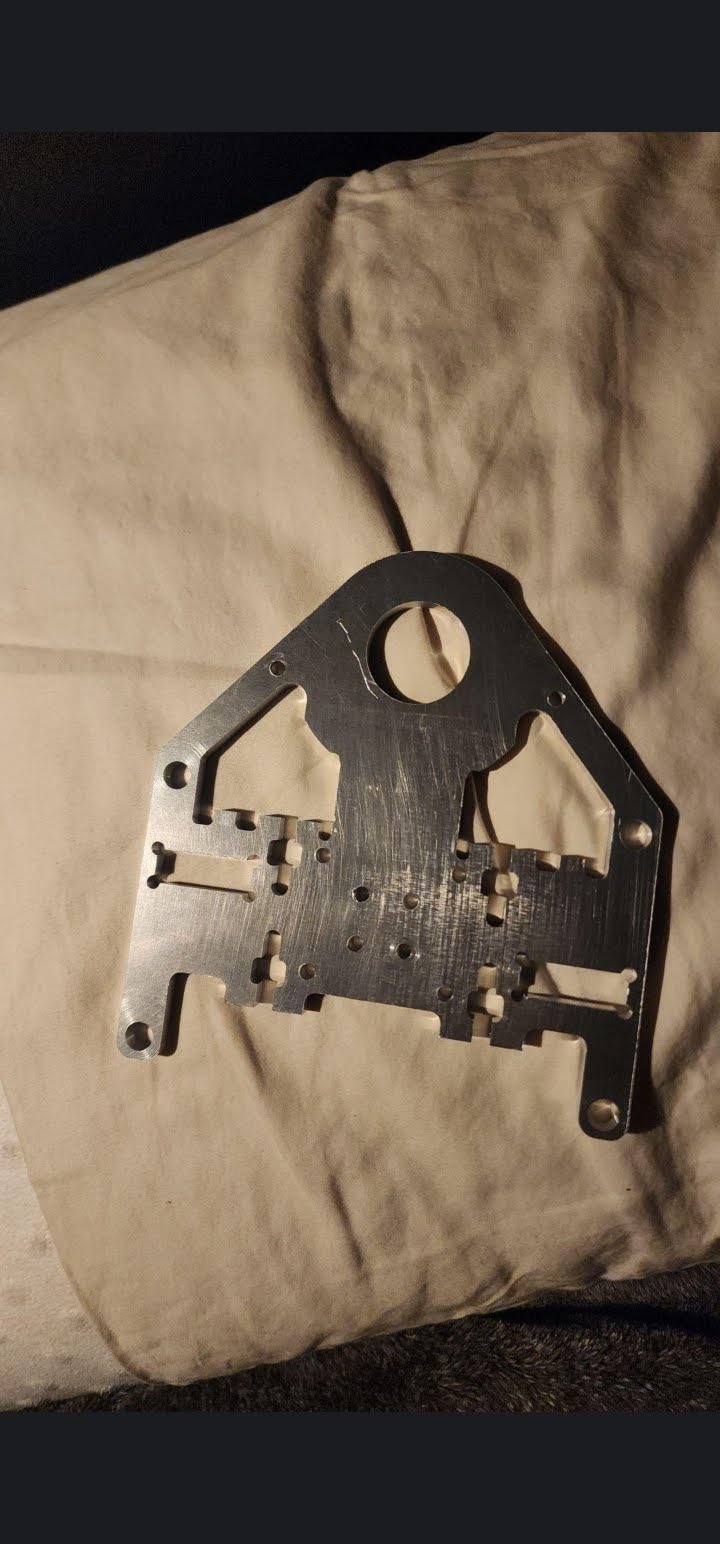

I researched and implemented standardized dogbone corner reliefs so toolpaths overcut corner vertices. This let 90-degree tabs clear corner radii and seat flush, eliminating the need for repeated manual corner cleanup.
Process Standardization and DFM Integration
- CAD integration: Embedded dogbone templates directly in Onshape/SolidWorks models before CAM export for assembly-ready parts.
- Manual retrofit protocol: Created drill-press jig workflow to add corner reliefs quickly when CNC queue constraints required fallback methods.
- Repeatability gains: Achieved tight, repeatable press-fit assemblies with reduced iteration time and consistent plate mating behavior.
Machining Leadership
- CAM and machine operation: Managed toolpaths, feed rates, and fixturing for aluminum and polycarbonate while controlling burr and deflection risk.
- Mentorship and QC: Trained teammates on calipers, micrometers, inspection flow, and shop safety to maintain tolerance discipline across subsystems.
Key Outcomes
- Time savings: Reduced plate post-processing from hours of manual filing to under a minute of automated machining relief per subsystem.
- Structural reliability: Delivered robust 3D plate assemblies that held up to defense and repeated high-impact gameplay loads.
- Team continuity: Captured tab-and-slot DFM standards in Wolfpack's engineering playbook for future build seasons.
